Hydraulic Propulsion from Hydraulic Marine Systems, Inc.

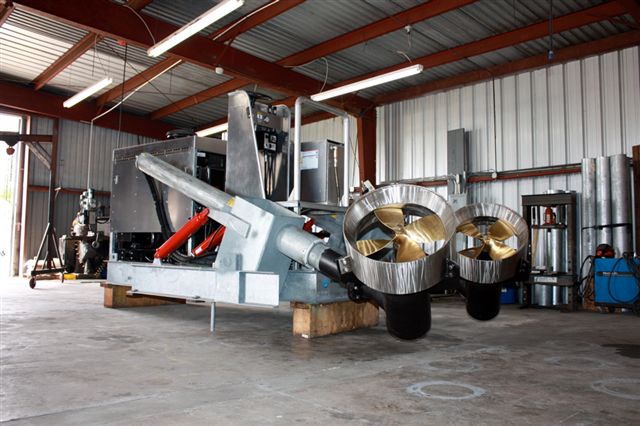

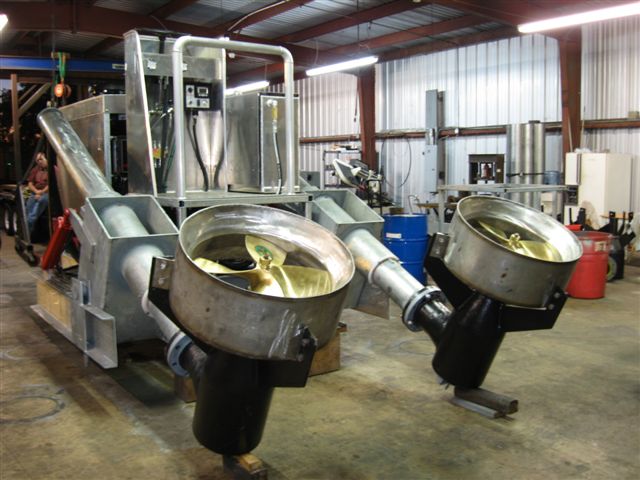

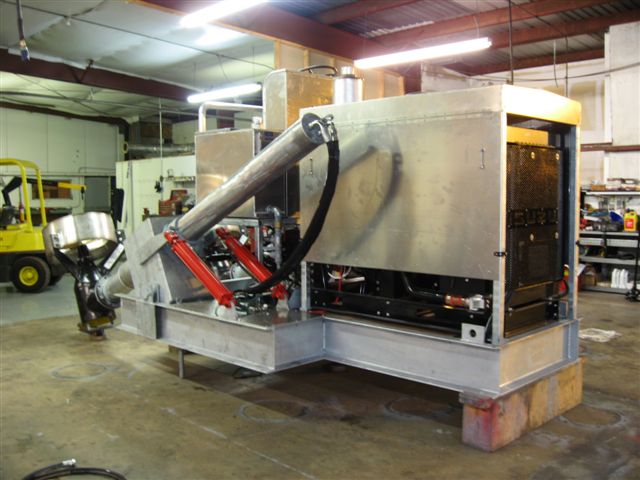

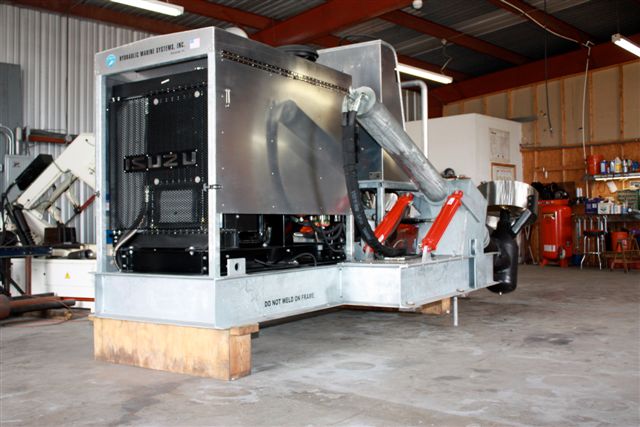

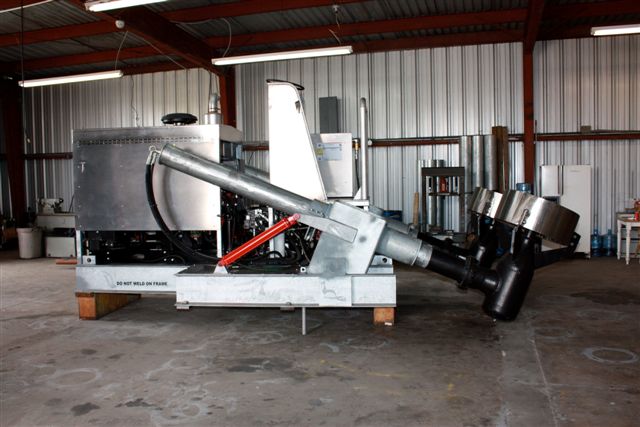

Isuzu powered Tier III Turbo-Diesel 300hp Self-Contained Twin Thruster, Producing 6,000 lbs. of Thrust! Equipped with Long Reach capability, this unit reaches 10' into the water to centerline of the propellers from mounting deck! Quick, easy installation with welded, bolt-able mounting pads makes this machine extremely portable and easily transfered from one platform to another. Ideally suited for crane barges, this unit can easily power and maneuver platforms from 30' x 80' (as shown in video above) to 50' x 200' . Fully self-contained turn key propulsion with a typical set up time of 90 minutes or less.

Specs:

Patent No: US 7,654,875 B1

Engine - Isuzu Tier III Turbo-Diesel, Radiator cooled Industrial engine, model 6HK1X Hydraulic Pumps - Sauer Danfoss 90 Series Heavy Duty, Model 75cc Hydraulic motors - Sauer Danfoss 90 Series Heavy Duty, Model 130cc Steering - Eaton Corp, Charlynn Orbitrol hydraulic Controls - Sauer Danfoss electronic joystick with independent fwd/rvs thrust Fuel tank - 100 gallon All Aluminum Hydraulic Reservoir - 50 gallon all aluminum with sight gauge, Mobile/Gate valve and internal pick up screen Filtration - Charge Pressure side Sauer Danfoss, Return side Eaton-Vickers Helm - All Aluminum Engine Hood and Protective Side Covers - All Aluminum Hoses - US made Aero-Quip, Hi-Pressure Structural Frame - Hot-Dip Galvanized Steel, re-inforced Propellers - Kaplan 4-Blade 24" Nozzles - Stainless Steel, Matched with 1/8" clearance

Weight - 10,200 lbs. Length - (on deck) 8' 6" Length OA - 11' 6" Width - 7' 8" Height - 7' 7"

Fuel Consumption - Max. 13.11 gal./ 49.62L at Peak Torque Hydraulic Fluid - Chevron/ Clarity bio-degradeable

Warranty - 5 years structural & workmanship, 2 years engine and components.
