HYDRAULIC MARINE SYSTEMS
THRUSTWORTHY
Hydrostatic Drive Propulsion

Scroll down for all available equipment:

__________________________________________________________________________

FOR SALE: SOLD

One Used Self Contained Single Thruster with Helm Controls. New 173 HP Replacement Engine. Unit has been Refurbished or Overhauled. Ready now for Delivery. Selling Price $65,000.00.



FOR SALE: IN PRODUCTION

 Inventory: Ready for delivery. 202HP Perkins 1106D Tier3, Thruster  Model 2424HD Single self contained unit . Selling Price $89,995.00 This Thruster can be outfitted with Pilot House Controls or Tethered Controls as an Option.



FOR SALE:

Detroit Marine Diesel 8V92 Twin Turbo 735HP Newly Rebuilt 250 HRS. Thruster Hydraulic Package with new pump. Included Propeller 47 x 36 pitch. 10,000 +Lbs Thrust $149,000.



FOR SALE: SOLD 11/27/2018

2 Used self contained units. Manufactured in 2013. These units are 293HP Isuzu Powered (102 hours of service). Out of business sale. Units are wired to dual pilot house control and can both be operated from the pilot house. Units are also equiped with optional 360 degree steering and extended reach (allowing 9.5 feet from deck to centerline of propeller. Vertical adjustment up to 6 feet. Selling price $125,000.00 each - $250,000.00 for the pair. Units will be gone thru at our facility and verified all systems at peak performance.





FOR SALE: SOLD 11/22/2019

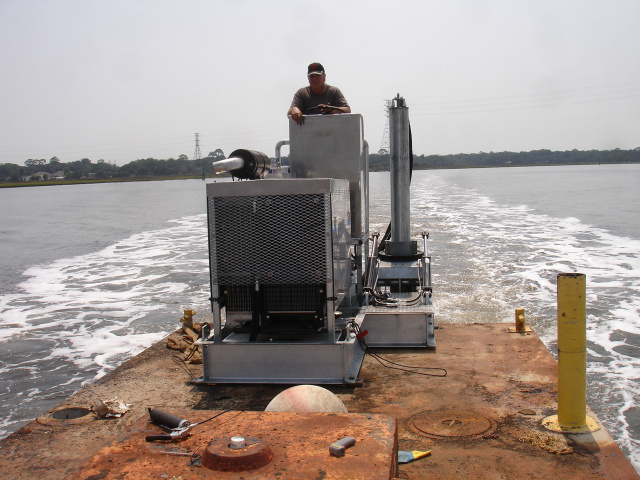

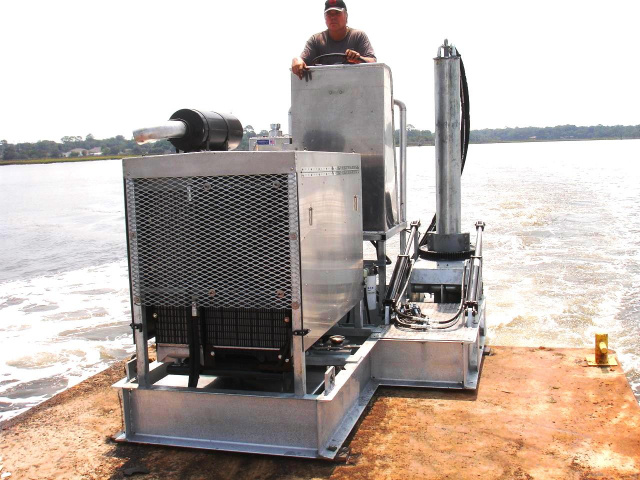

In production 175HP Perkins Powered Single Thruster with Helm Controls. $79,995.00 Options of Pilot house Controls available at additional cost.

FOR SALE: SOLD 9/2/2018  Immediate Delivery, price $65,000

Used Perkins 175HP Twin Thruster (2350 hrs.)









  SOLD   Immediate Delivery, Substantially reduced price $60,000

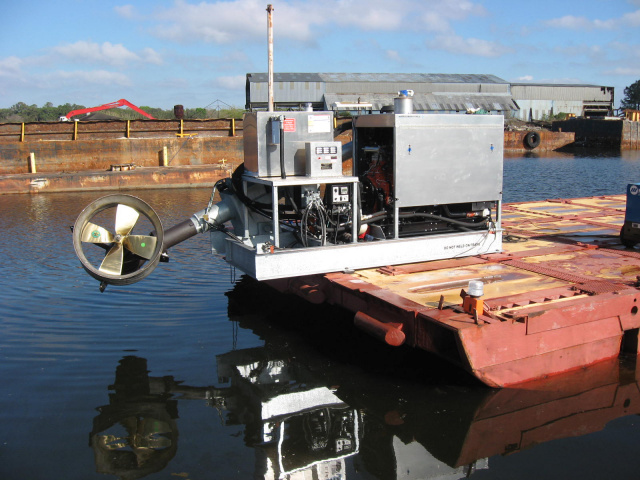

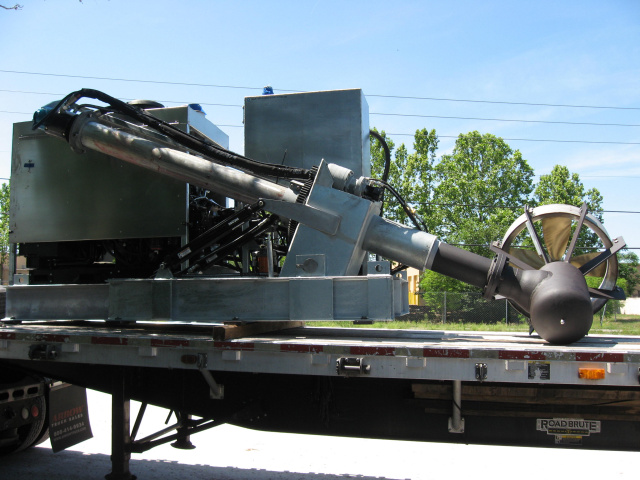

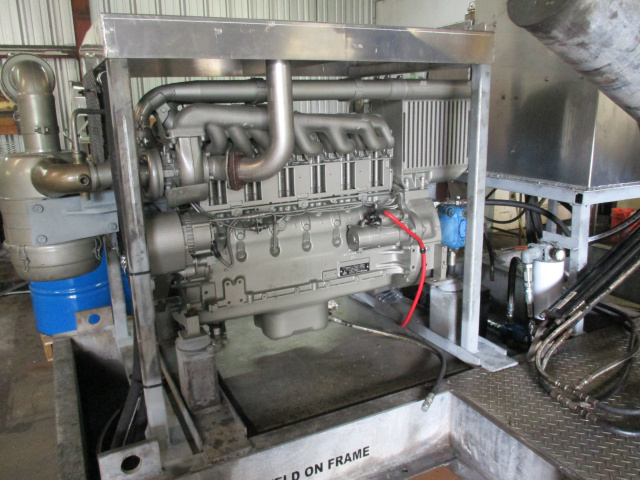

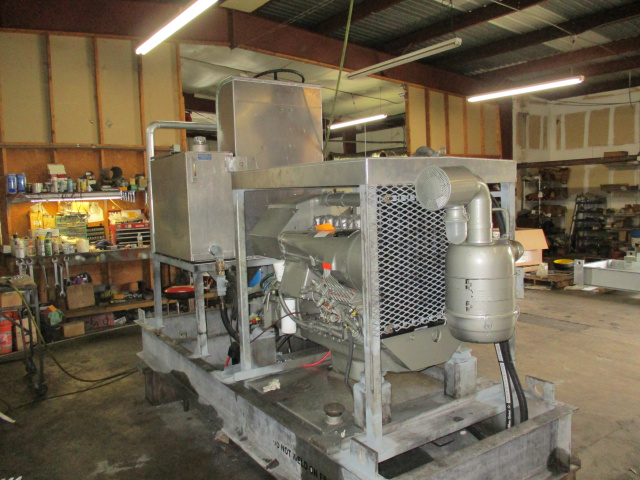

Reconditioned 150HP self contained (turn key ready) Hydraulic Thruster. 150HP factory remanufactured Deutz 914 air cooled Turbo Diesel Industrial Engine. Hydraulic pump, motor complete rebuild, Helm controls, 180° Steering, Hot dipped galvanize frame & stanchion tube. Propeller depth adjustable to reach of 9.5 from deck to centerline of propeller. Helm platform, Hydraulic tank and Fuel tank made of marine grade aluminum. 24 inch 4 blade manganeze bronze propeller with matched stainless steel nozzle, easily transportable. Warranties Included, lease option to purchase, call 386-734-0020.

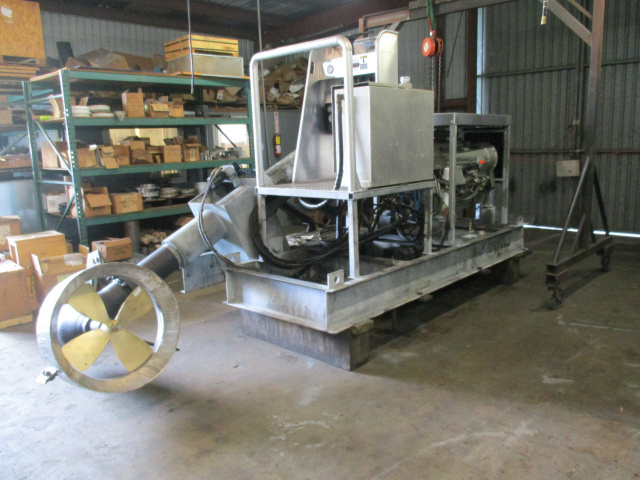

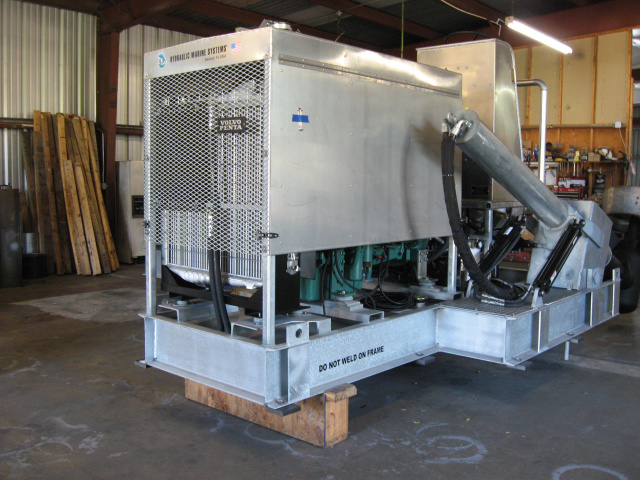

200 HP VOLVO PENTA Powered Heavy Duty Single Thruster (Turn Key Ready)

Inventory Sale - Available for  Delivery  2/28/2017.   SOLD

In Production now- Lead Time Drastically Reduced-  FOR SALE  $79,995.00



Details:

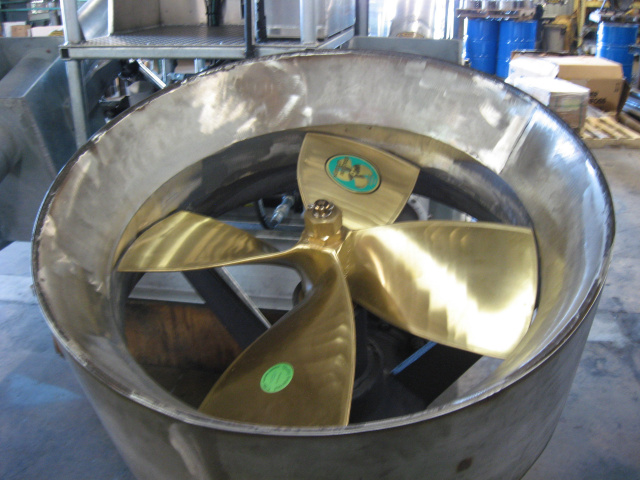

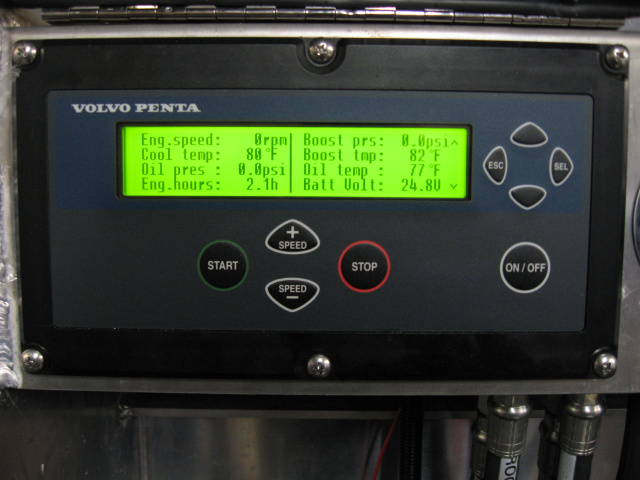

VOLVA PENTA Tier IIIA Turbo-Diesel Industrial Radiator-cooled engine with helm mounted Engine Control panel including instrumentation; Sauer-Danfoss 90 Series Heavy Duty Variable Hydraulic Pump and Fixed Motor; Extended Reach capability, allowing 9.5' to centerline of propeller from mounting deck; Kaplan 24" 4-Blade Propeller with matched Stainless Steel Nozzle; Hot-dip Galvanized Structural Steel Frame; Aluminum Helm, Hood and side access doors; Aluminum 60 gallon fuel tank; Aluminum 50 gallon hydraulic tank; Eaton-Vickers Return filtration system with spin-on Filter; Fan mounted Hydraulic Oil Cooler; Dual Hydraulic Horizontal Tilt Cylinders with Stainless Steel Rods; Manual vertical depth adjustment up/down 6';

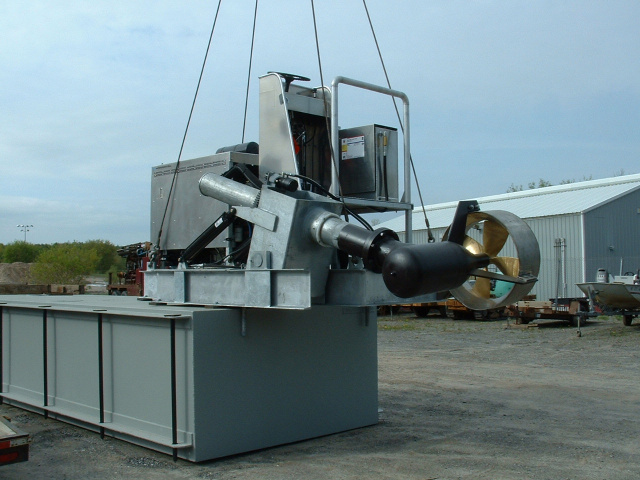

This Diesel powered, hydraulically operated 'Silver Tsunami'® Thruster has a quick set-up time (60 minutes) and is suitable for a varying range of platforms from 4' to 8' deep. The Thruster is fully hydraulic, with no drive shafts, gear boxes or transmissions. The thruster propeller is controlled with a Sauer-Danfoss Variable Control Electronic Joystick. This unit can go from full forward to full reverse in 1.5 seconds. Steering is controlled from the Helm with a steering wheel and the unit steers 180° +/- (90° left/right). The unit is easily truckable and has a weight of approximately 7,100 lbs. Installation is quick and easy. The unit sits on weldable steel deck mounting pads, 1" thick. The pads are bolted to the bottom of the frame. To install the unit, lift it into position on the deck, weld the pads down and you are ready to operate! If you need to transfer the unit to another platform, simply un-bolt the unit from the pads, bolt on another set and repeat the process.



___________________________________________________________________________

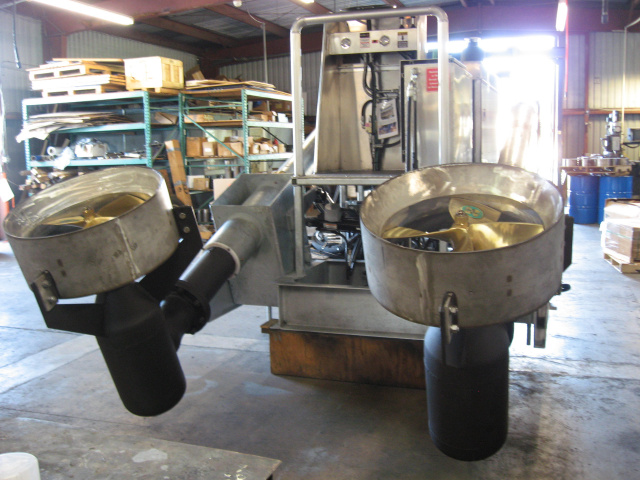

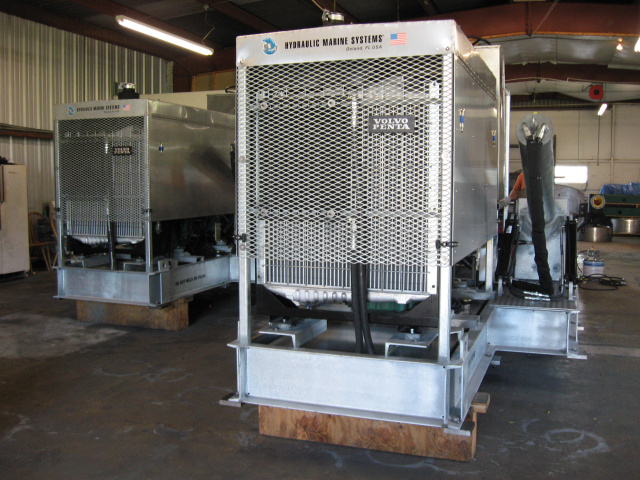

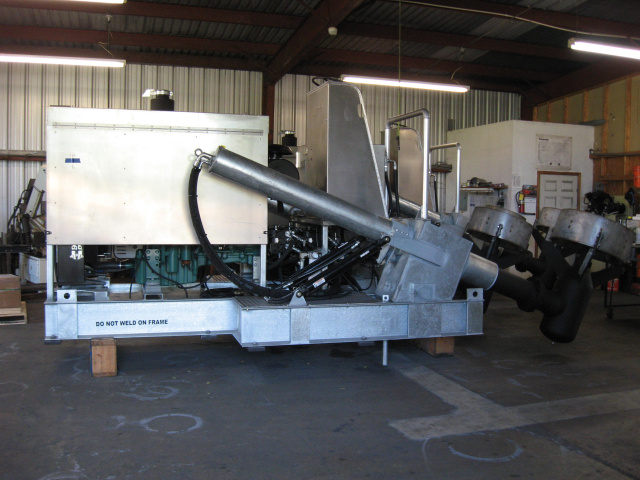

305HP VOLVO PENTA Powered Heavy Duty Twin Thruster      SOLD

 Inventory Sale - Available for Delivery, built upon request













Details:

VOLVA PENTA Tier IIIA Turbo-Diesel Industrial Radiator-cooled engine with helm mounted Engine Control panel including instrumentation; Sauer-Danfoss 90 Series Heavy Duty Tandem Variable Hydraulic Pumps and Fixed Motors; Extended Reach capability, allowing 9.5' to centerline of propeller from mounting deck; Kaplan 24" 4-Blade Propellers with matched Stainless Steel Nozzles; Hot-dip Galvanized Structural Steel Frame; Aluminum Helm, Hood and side access doors; Aluminum 100 gallon fuel tank; Aluminum 80 gallon hydraulic tank package; Eaton-Vickers Return filtration system with spin-on Filter; Fan mounted Hydraulic Oil Cooler; Dual Hydraulic Horizontal Tilt Cylinders with Stainless Steel Rods; Manual vertical depth adjustment up/down 6'.

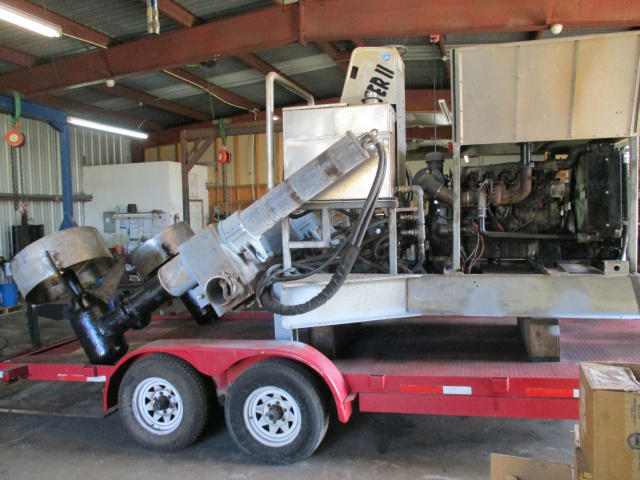

This Diesel powered, hydraulically operated Dual propeller 'Silver Tsunami'® Thruster has a quick set-up time (60 minutes) and is suitable for a varying range of platforms from 4' to 8' deep. The Thrusters are fully hydraulic, with no drive shafts, gear boxes or transmissions. The propellers are controlled with Sauer-Danfoss Variable Control Electronic Joysticks. The propellers can go from full forward to full reverse in 1.5 seconds. Each propeller is independently operated, allowing one to be in forward and one in reverse at the same time. Steering is controlled from the Helm with a steering wheel. The propellers are linked together (with a steering rod) and steer in tandem. The 90° left/right steering range, combined with independent forward/reverse operation allows the platform to be extremely maneuverable.

The machine is easily truckable and has a weight of approximately 10,600 lbs. Installation is quick and easy. The unit sits on weldable steel deck mounting pads, 1" thick. The pads are bolted to the bottom of the frame. To install the unit, lift it into position on the deck, weld the pads down and you are ready to operate! If you need to transfer the unit to another platform, simply un-bolt the unit from the pads, bolt on another set and repeat the process.



___________________________________________________________________________

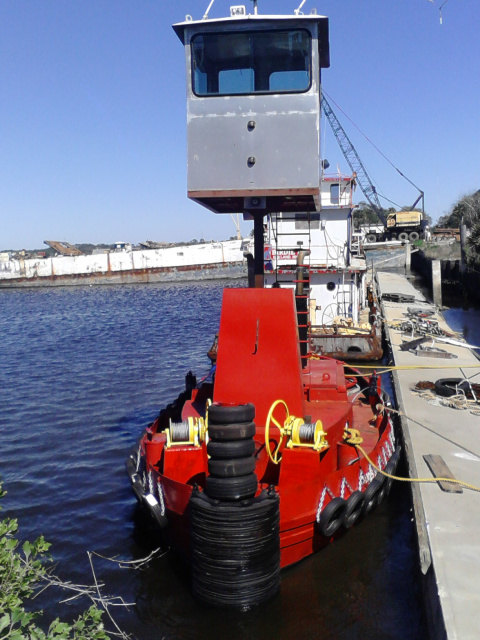

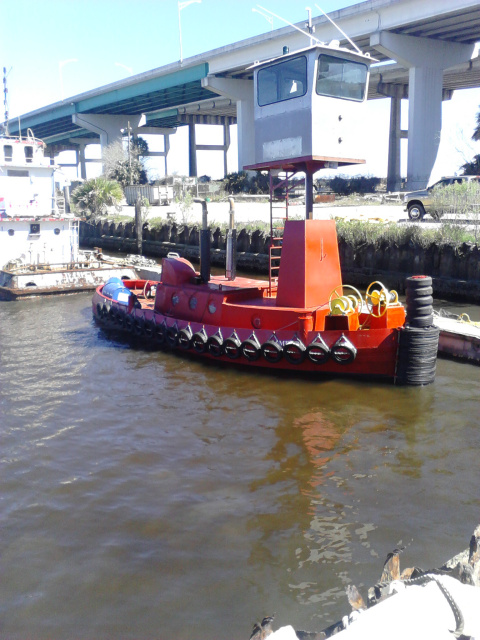

38' Push-Boat 8V92 Detroit Diesel 735HP For Sale - $175,000.00

or  Lease $8,000 / mo., 12 mo. minimum.  (Long Term Lease negotiable)

Scroll down for additional details:



MAIN POWER

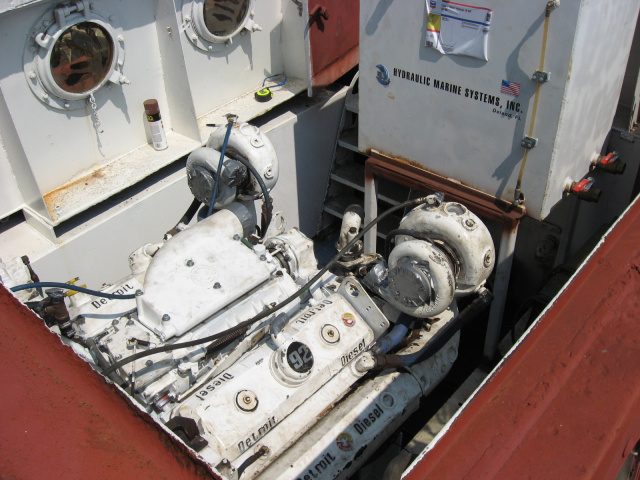

- Detriot Diesel 8V92 735BHP

- Engine completely over-hauled / full rebuild 2013. current 50 hrs. on rebuild.

- Dual 400 gallon Diesel tanks (800 Gal. capacity)

- New Exhaust (wrapped)  - Water-cooled Twin Turbos

- Electric Start 24VDC

- Air Throttle

- Seawater cooling











PROPULSION

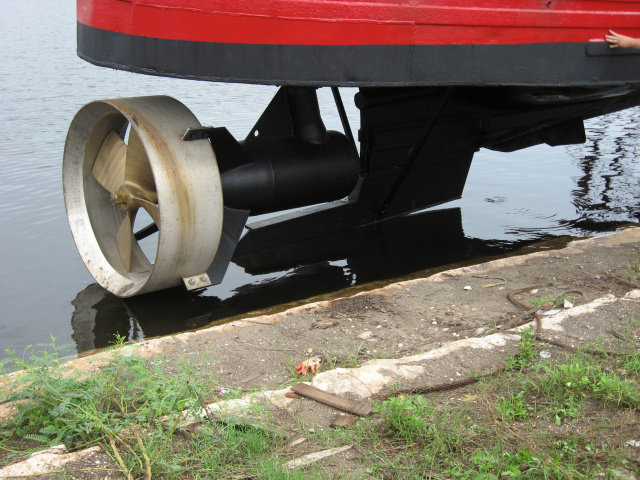

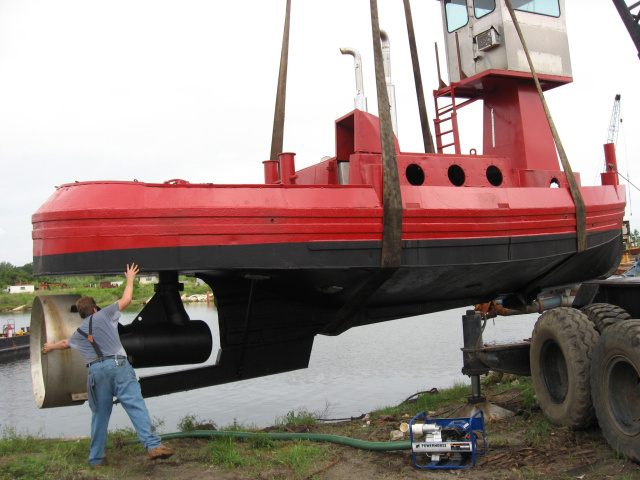

- Thru-Hull Rudder-less Azimuth Style Thruster 180° Steering (90° Left/Right)

- Hydraulic Direct Drive - 4.77:1 Gear Reduction

- Kaplan 4-Blade Manganeze Bronze Propeller

- Stainless Steel Matched Nozzle

- Sauer Danfoss 51 Series Fixed Hydraulic motor 250cc

- 520Hp at the water



HULL - STEEL

 L = 38' 6"     Beam = 13'    Depth = 9'     Draft = 7'

- Full fendering

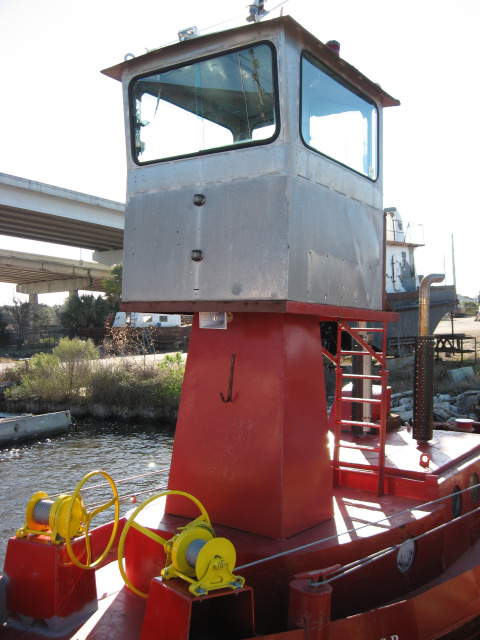

 CONTROL HOUSE - ALUMINUM

- Hydraulic Ram, Telescoping up/down 4'

- Engine instrumentation - Gauges

- Engine push-button Air Start

- Steering / Electronic Joystick

- Propulsion / Electronic Joystick Variable control Forward/Reverse Thrust

- Thruster Position Indication / Electronic Graphic Display Panel

- Hydraulic Temperature and Pressure Monitoring / Electronic Digital

- Ship to shore Radios (2) with antennas

- Go-Light Spotlight with joystick control

- PA System with listen back (Exterior Forward and Aft Speakers)

- 2-way communication radios (2)

- Engine room Fire Alarm monitoring

- Hull Bilge Pump Alarm Monitoring

- Full Coast Guard Regulation Exterior Lighting

- Fully Equipped Coast Guard Required Safety Gear and Life Saving Equipment









  EQUIPMENT / ACCESSORIES

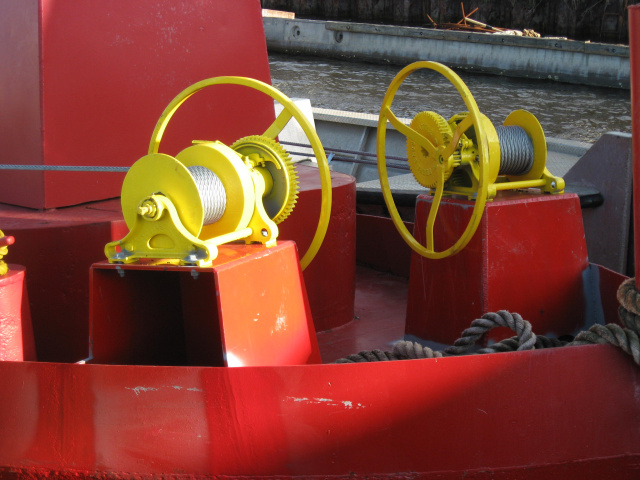

- refurbished BeeBee Winches (Like New)

- New Galvanized Steel winch Cables (75' each)

- Fire Extinguishers

- Life Vests / Recovery Pole / Life Saving Throw Ring

- Coast Guard VDOC Documentation

- Vessel meets and/or exceeds all Coast Guard Regulations for Un-inspected Vessels -

   (26'-39' category)

This Push-boat Vessel is ready for immediate service (5/2014). Can be truckable (with pilot house removed).















_________________________________________________________________

U.S. Patent Nos. 7,654,875 B1, 7,883,384 B1, 8,007,328 B2, 8,317,554 B1  8,353,734 B1  8,382,538 B1
